5787395-5
Manufacturer:
TE Connectivity
Mfr.Part #:
5787395-5
Datasheet:
Description:

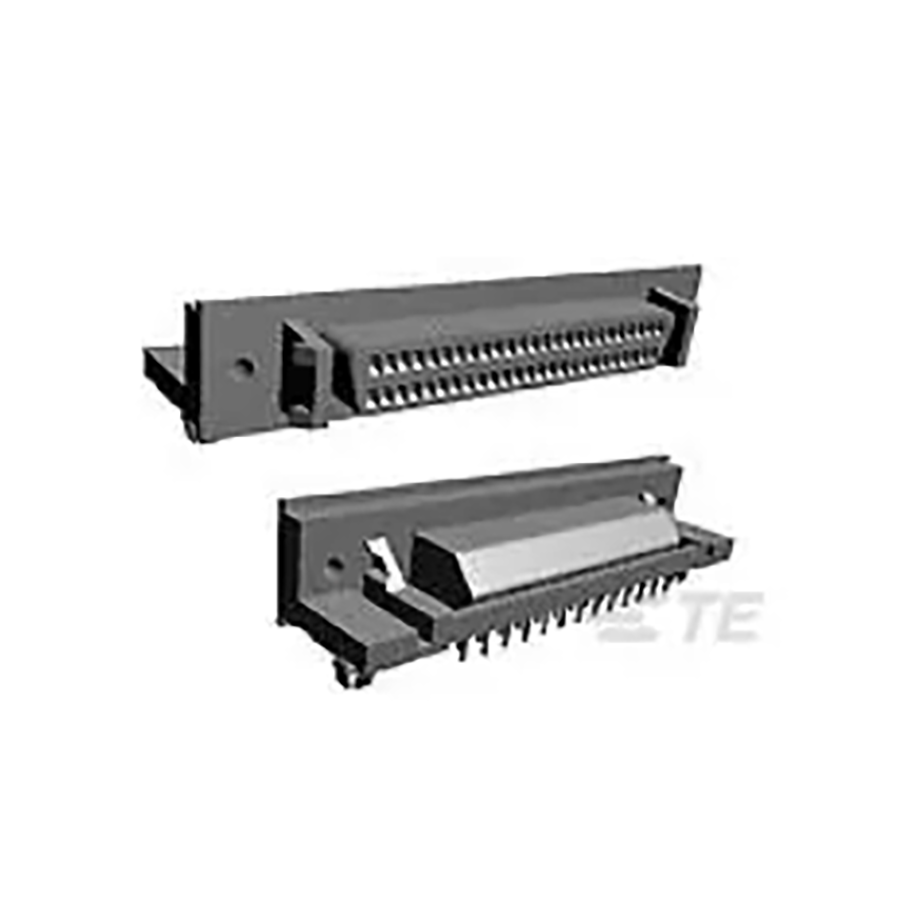

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:50 Solder Female
| Parameter | Value |
|---|---|
| Length | 52.45 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 30 V |
| Depth | 16.87 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Features | Shielded |
| Lead Length | 2.54 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 50 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 50 |
| Hole Diameter | 2.7686 mm |
| Connector Type | Connector, Receptacle |
| Contact Type | Signal |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 30 V |
| Max Supply Voltage (AC) | 30 V |
| Housing Color | Black |
| Plating | Copper, Nickel |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57 mm |
| Shell Material | Steel |
| Sealable | No |
| Mating Connector Lock | With |
| PCB Mount Retention | With |
Stock: 449
Distributors
pcbx
pcbxUnit Price$5.71895
Ext.Price$5.71895
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.71895 | $5.71895 |
| 10 | $4.86228 | $48.62280 |
| 25 | $4.59373 | $114.84325 |
| 50 | $4.34006 | $217.00300 |
| 100 | $4.13284 | $413.28400 |
| 300 | $3.90487 | $1171.46100 |
| 500 | $3.68946 | $1844.73000 |
| 1000 | $3.51960 | $3519.60000 |
